Your vehicle

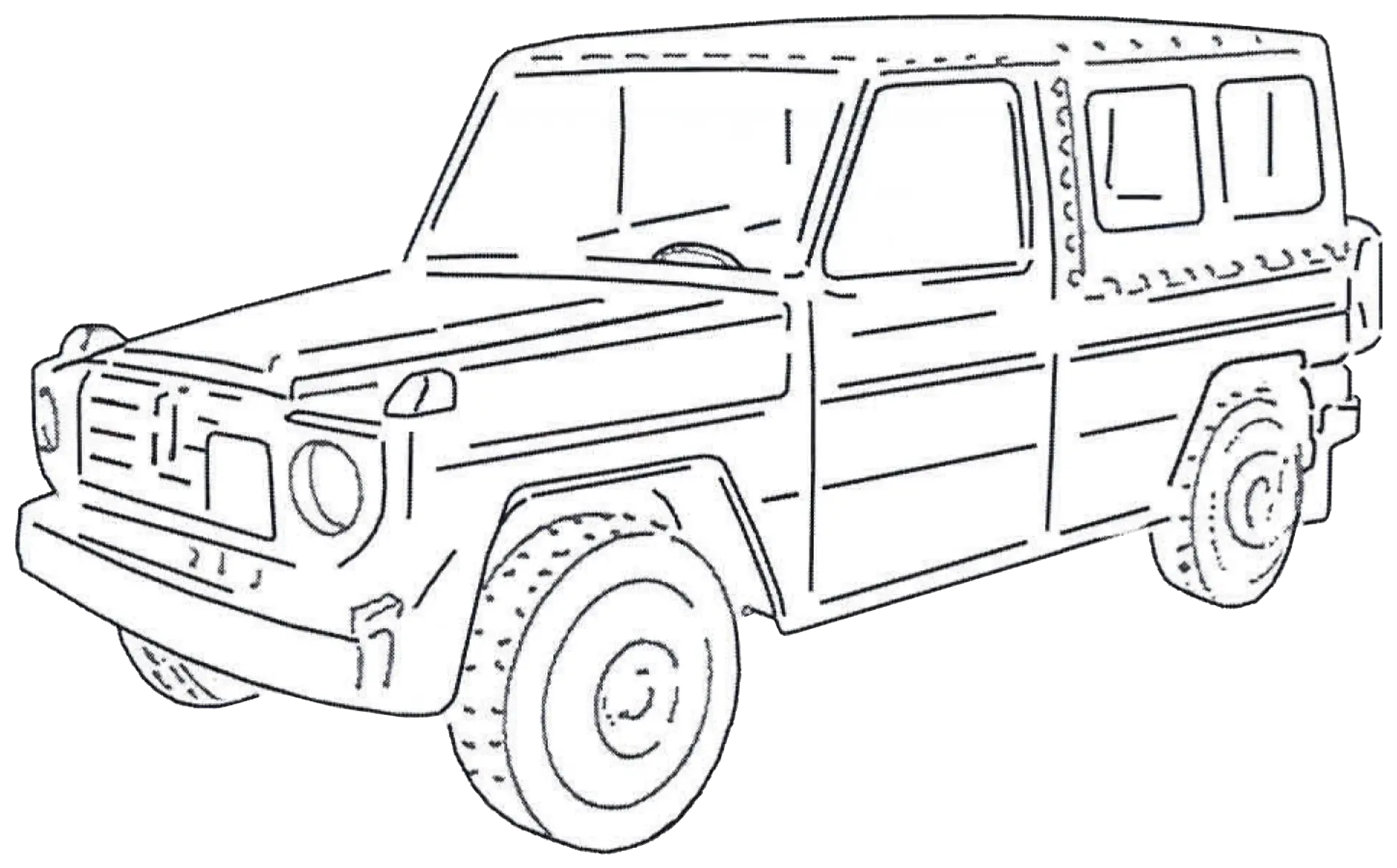

PUCH G 230 GE

Engine
2.3 liter petrol engine

Power
116 HP / 85 kW

Construction type:
Off-road vehicle

Construction year:
1990-1996

Products & Spare Parts
Combustion principle
four-stroke Otto (with manifold-injection and emission control device with 3-way catalyst)

Configuration
front, longitudinal; vertical

Engine type
M 102 E 23 / 102.989

Number of cylinders / arrangement
4 / in line; 15° inclination to the right

Bore x Stroke
95.5 x 80.2 mm

Total displacement
2298 cc

Compression ratio
9.0

Rated output
93 kW / 126 hp at 5000 rpm

Rated torque
190 Nm at 4000 rpm

Number of valves / arrangement
1 intake, 1 exhaust / V-shaped overhead

Valve operation
1 overhead camshaft

Camshaft drive
single roller chain

Fuel system
manifold injection, mechanically-electronically controlled~(Bosch KE-Jetronic)

Fuel tank: position / capacity
under load compartment floor / 96 l
