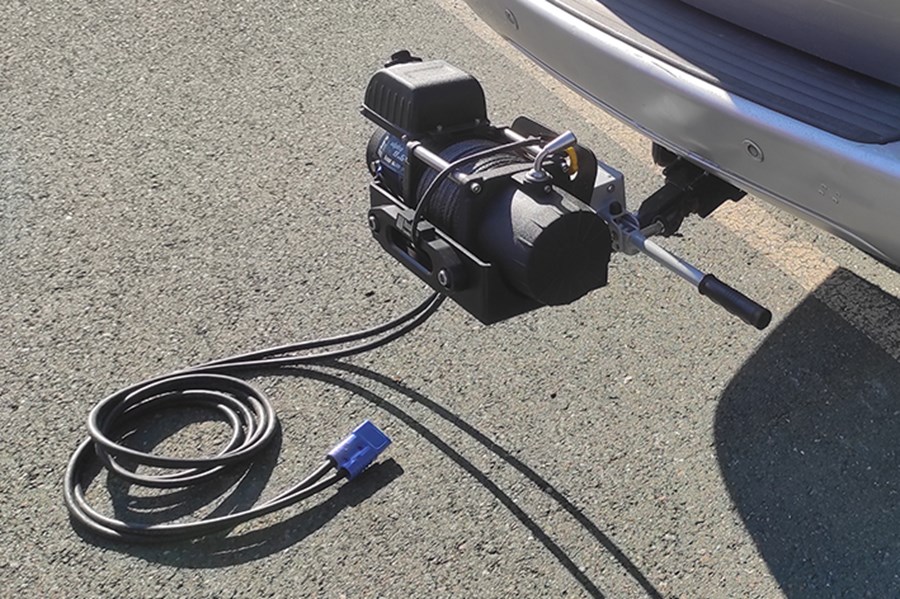

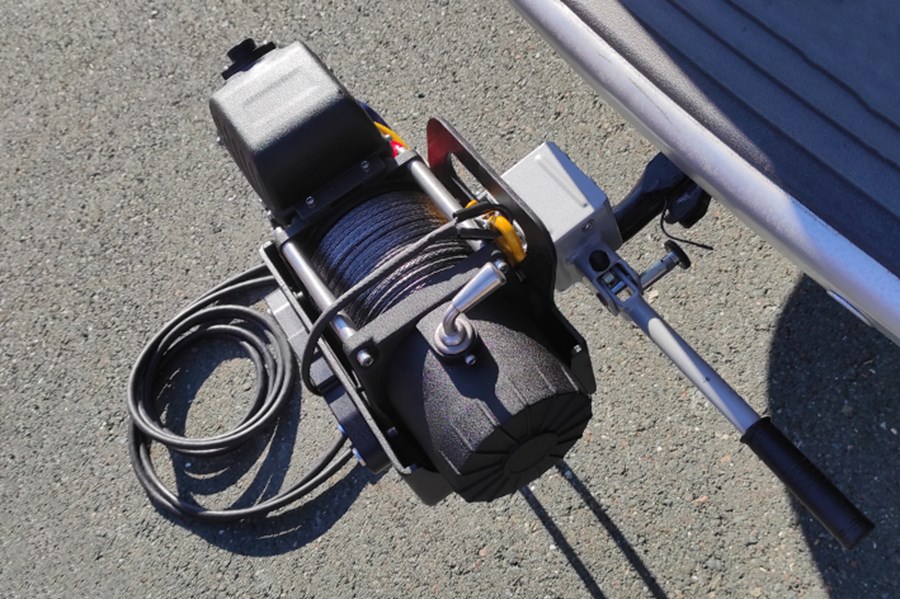

HITCH WINCH 24V 50M X 8MM PLASTIC ROPE

incl. 50m plastic rope 8mm thick

MHJAGD5

Motor IP67 sealed by groove with sealing ring
freewheel lever
Stainless steel cross braces
Reinforced cable drum
Powder-coated die-cast aluminum motor/gear box
Internal drum brake with 3 brake shoes
Removable control unit (so that the control can be installed as desired)
Reinforced, powder-coated contactor housing made from deep-drawn sheet metal
3-stage planetary gear
Max. pulling force: 4,300 kg
Max. pulling speed: 8 m/min without load
Reduction: 230:1
Max. power consumption: 290A
Voltage: 24V
Rope (∅ x length): 8mm x 50m
Drum (∅ x length): 63 x 223mm
Overall size (LxWxH): 538 x 163 x 220 mm
Weight: 37.1 kg
Cable cross-section: 35 mm²
Cable length: 180 cm
Pin Unpin
€ 787.50
(excl. 20% VAT.)
Available
+-
